Engine protection

Configure warning and limiting functions that protect the engine when monitored operating conditions move outside safe limits.

Engine protection functions

The ECU provides a number of protection functions in addition to the diagnostic system. Depending on the configured strategy, a protection event can warn the driver, limit engine speed or restrict maximum throttle position.

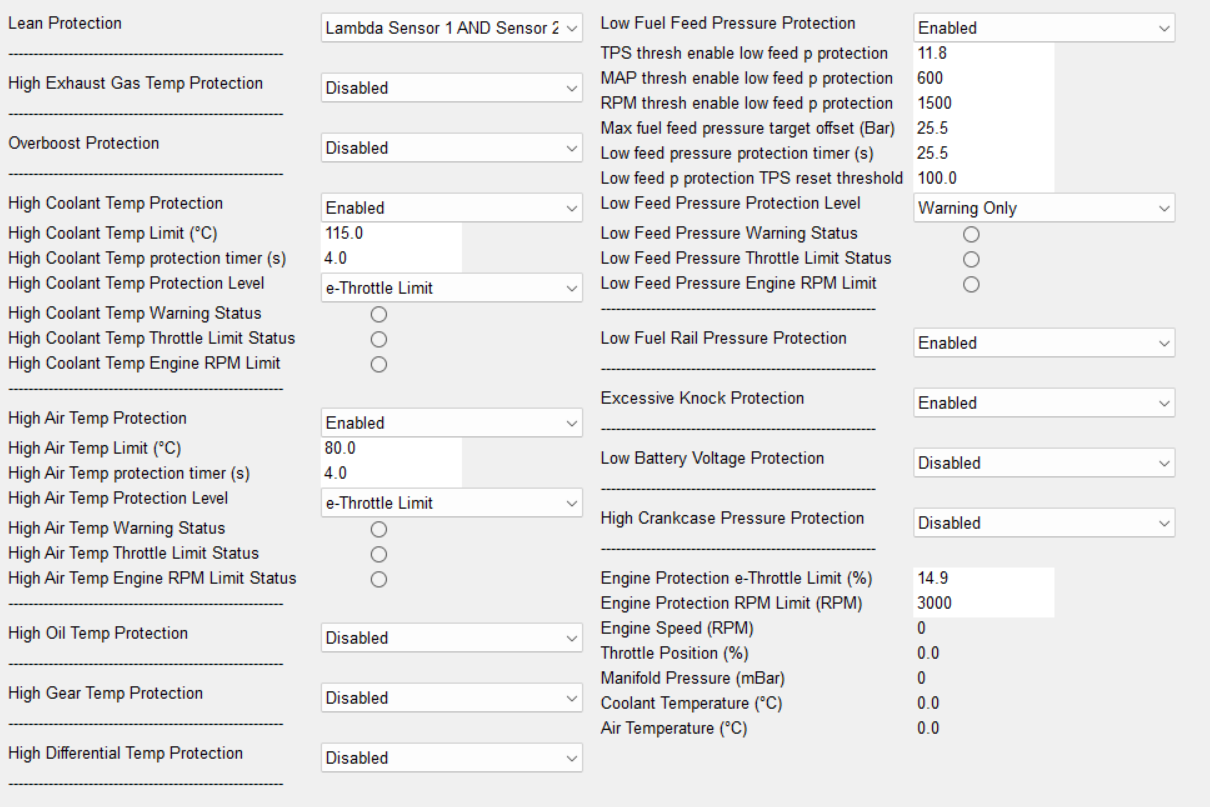

Overview of engine protection strategies. — Overview of the engine protection strategies.

These functions are intended to protect the engine under abnormal operating conditions. They are separate from the malfunction-indicator-lamp (MIL) diagnostic functions.

Oil pressure monitoring and protection

Scale and validate the oil-pressure sensor before enabling warning or automatic protection functions.

Oil-pressure protection can include lamp on/off thresholds, a minimum pressure requirement after the start-delay period and optional low-pressure engine shutdown. The shutdown threshold can use the Estimated Oil Pressure map together with a calibrated offset so that the minimum acceptable oil pressure can vary with engine operating condition.

Important: do not enable automatic engine shutdown until the sensor scaling, expected-pressure map and shutdown logic have been validated. A sensor or calibration error could otherwise stop the engine unexpectedly.
